Malware behavior patterns overview

    Many malware examples share a common pattern in deploying the malicious capabilities, which is based on acquiring accessibility capabilities as the initial step.

    The strategy to achieve this is by bothering the user through continuous notifications and/or windows popping up, prompting the user to grant accessibility capabilities for the malicious application.



    behaviors-overview-a11y-obtain

    Malware using webviews, notifications, and toasts to prompt the user to grant accessibility capabilities

    Once this first milestone has been reached, the malware will start abusing accessibility capabilities. On one side, clickers are used to self-grant permissions and become a device admin app, as well as to prevent the user from taking any action that could jeopardize the malware, such as: permission revocation, uninstallation, etc. For instance, if the user tries to access the malware application settings, the malware will click the “go backward” button. On the other side, keylogger mechanisms are activated.

    Clicker behaviors are illustrated in the picture below.

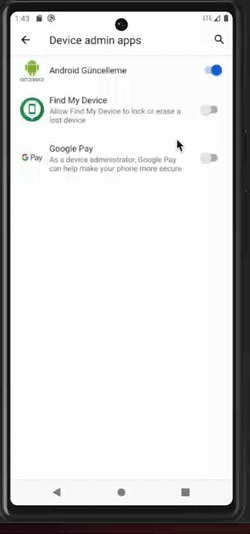

    behaviors_overview-persistence

    Malware clicker undoes the user's action to remove privileges

    In parallel, the malware starts collecting information about the device and attempts to establish communication with its command and control (C&C) server. If this communication succeeds, the malware will send the collected information and the server will send new modules or “injections” (if any) for any identified target, such as a particular bank application.

    Apps executing in the foreground are monitored via accessibility services and, whenever a target application appears, an "injection" will be overlaid at the right moment, e.g. mimicking the login screen.

    All retrieved data is then sent to the server.

    --- title: An example malware strategy to gain control and execute attacks --- flowchart TD o((.)) --> enable[Enable a11y] enable --Bother the user--> enable enable --> selfgrant[Self-grant permissions] selfgrant --> selfgrantadmin[Self-grant device admin] enable --> monitor[Monitor app execution] monitor --> selfdefend[Prevent actions against the malware, such as uninstall] monitor --> keylogger[Spy on entered data] monitor --> uiinject[UI Injection] keylogger --> harvest[Collect sensitive info] uiinject --> harvest harvest --> cnc[Communicate via C&C] cnc --> exfiltrate[Exfiltrate data] cnc -.-> updates[Receive new modules or injections] updates -.-> uiinject click selfgrant href "/mobile-app-security-research-center/malware/behaviors/device-admin" "Device admin priviledges" click selfgrantadmin href "/mobile-app-security-research-center/malware/behaviors/device-admin" "Device admin priviledges" click selfdefend href "/mobile-app-security-research-center/malware/behaviors/device-admin#1" "Device admin priviledges" click keylogger href "/mobile-app-security-research-center/malware/accessibility-service-malware" "Ally attacks" click uiinject href "/mobile-app-security-research-center/malware/overlay-attacks" "Overlay attacks"
